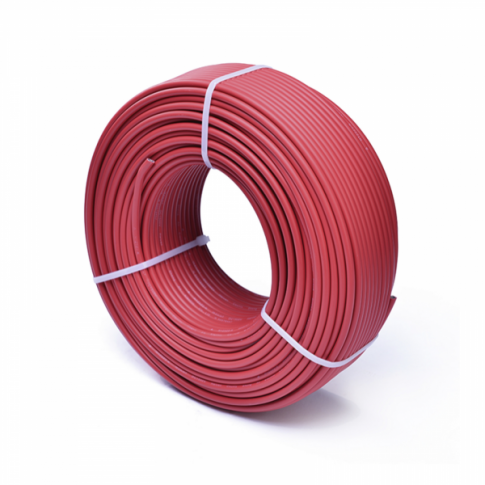

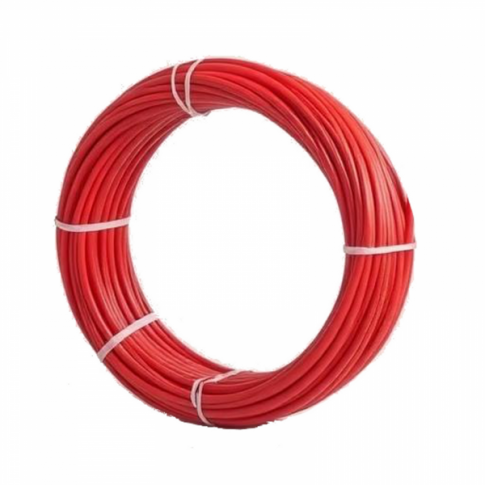

This is a 50-metre coil of premium-quality 4.0mm² single core red solar PV cable, purpose-built for demanding photovoltaic applications. It features a high-conductivity tinned copper conductor for excellent corrosion resistance and long-term electrical performance. The cable is double insulated, offering enhanced mechanical strength and safety, making it ideal for use in both residential and commercial solar installations.

Compliant with IEC 62930 and rated H1Z2Z2-K, this cable is also TÜV certified, meeting international standards for high-voltage DC solar systems up to 1500VDC. The tough red outer sheath is UV-resistant and designed to withstand a wide range of weather conditions, including intense heat, cold, and moisture. This ensures safe, reliable performance even in the most challenging outdoor environments.

With a larger 4.0mm² cross-sectional area, this cable is suitable for higher current applications and longer cable runs where minimising voltage drop is critical. It is well-suited for use with medium to large-scale solar arrays, battery banks, inverters, and charge controllers. Its flexibility and rugged construction make it easy to handle during installation while ensuring long-lasting durability.

Although this listing is for the cable only, it is fully compatible with standard MC4 connectors commonly found on most solar panels, including those supplied by Photonic Universe.

For larger solar energy systems requiring robust and efficient cabling, this 50m coil of 4.0mm² PV cable offers a reliable, standards-compliant solution for stable and secure power transmission.

Cable specifications:

• Conductor: tinned copper
• Colour: Red
• Cross section: 4.0mm²
• Strand configuration: 56/0.28
• Insulation thickness: 0.70mm
• Shealth thickness: 0.90mm
• Outer diameter: 5.6mm
• Voltage rating: 1.5kV DC / 1.0kV AC
• Conductor resistance: 5.09 Ohm/km (20°C)
• Rated current: 55A
• Working temperature range: -40°C to +120°C
• Insulation and Jacket: XLPE (E-Beam cross-linked compound, flame retardant, halogen free, UV and ozone resistant)
• Certifications: TUV, IEC 62930, H1Z2Z2-K
• RoHS & Reach conformity

If you have any questions about this item or you need our free advice please contact us via email or phone.
